Adding Layout Animation

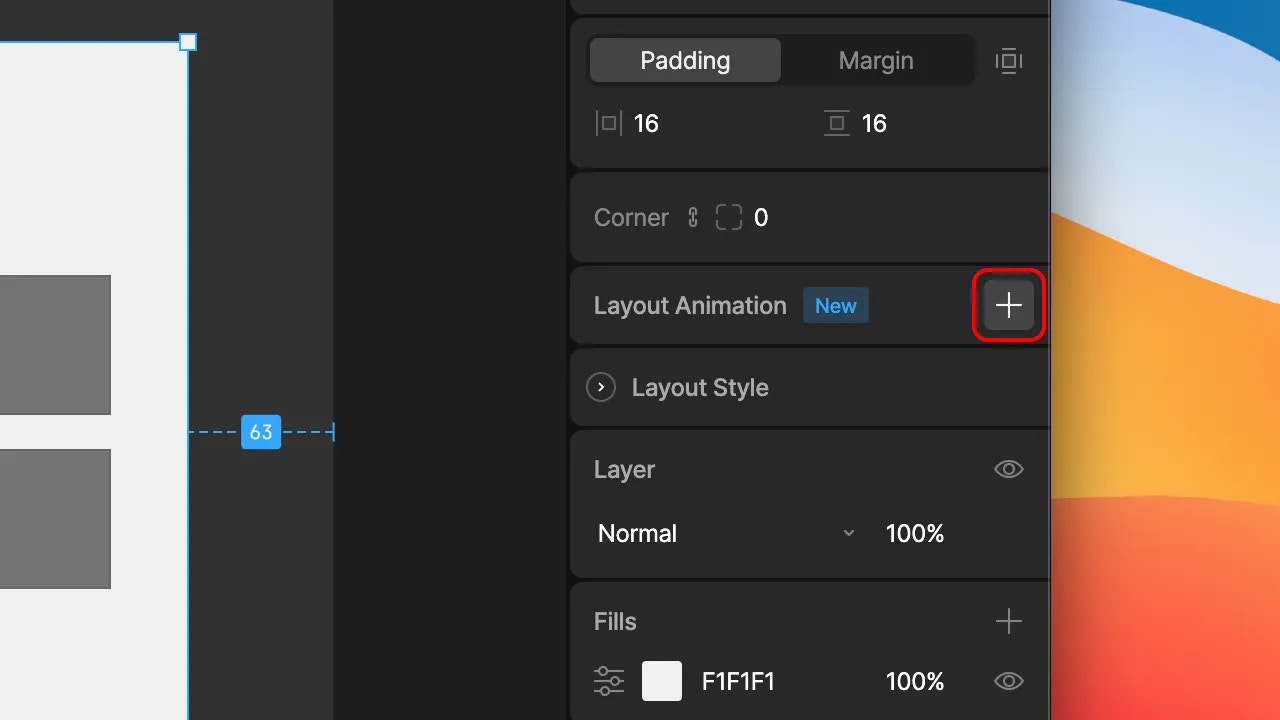

To get started, select a Layout component and select the + action alongside Layout Animation in the inspector. Typically, you may want to set this on the parent Layout in the majority of cases. Image Next, choose from one of 3 different modes:
  • None: No animation.
  • Inherit: Inherit the animation parameters from the parent Layout.
  • Custom: Define the animation parameters for the selected Layout.

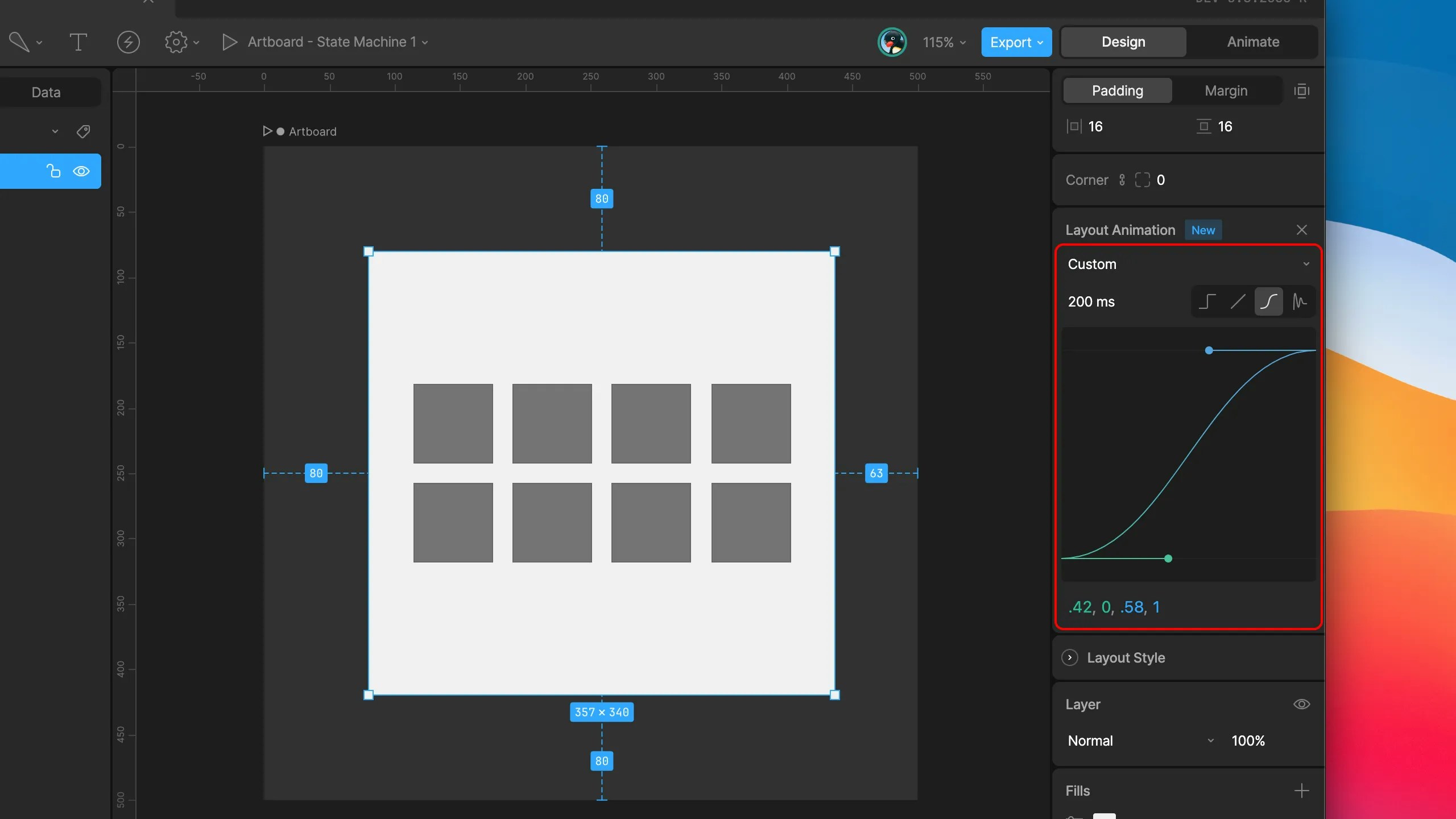

With the custom option selected, you can set a duration and interpolation type similar to that of a State Machine transition. All interpolation types except cubic value are supported. Image With a custom animation applied to a parent Layout, setting the child Layouts to inherit means they’ll all use the same parameters as those on the parent. Alternatively, you can choose to apply custom interpolation to child components individually.
